6 mm x 2.5 mm | 3 V | BLDC Coin Vibration Motor

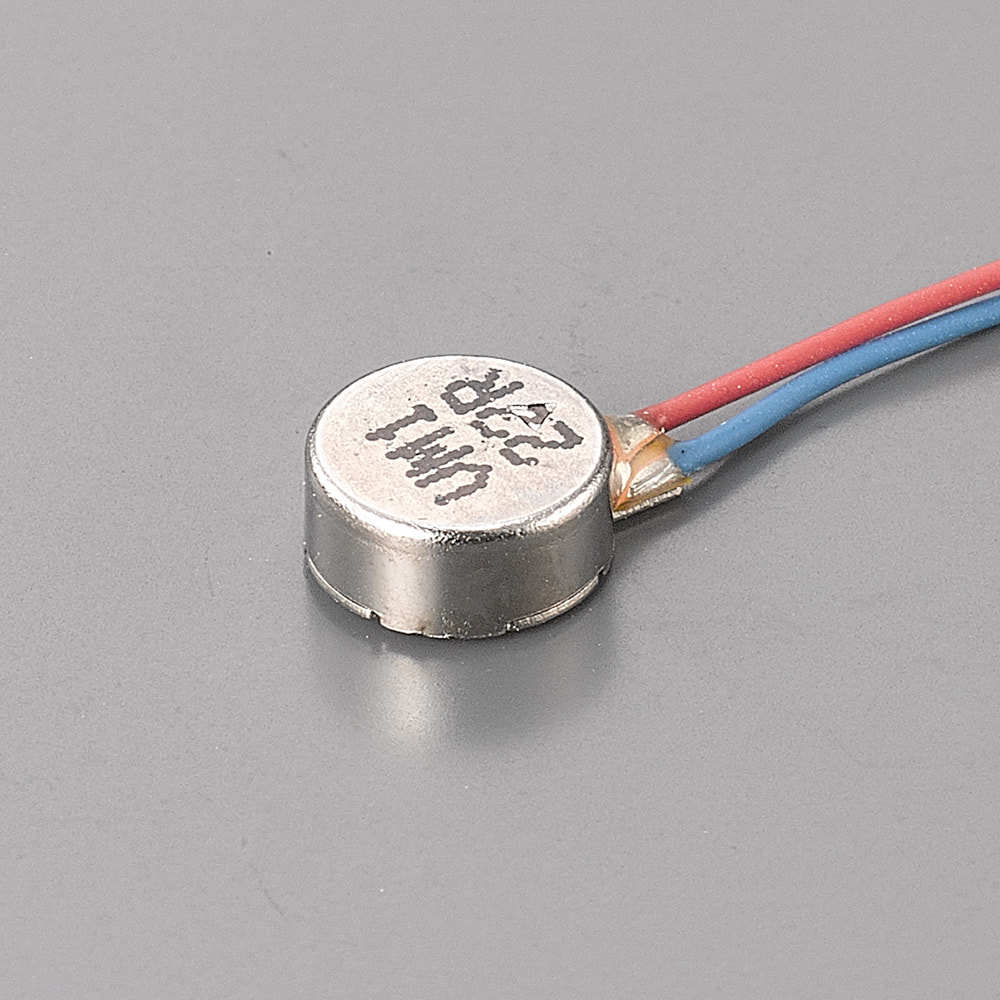

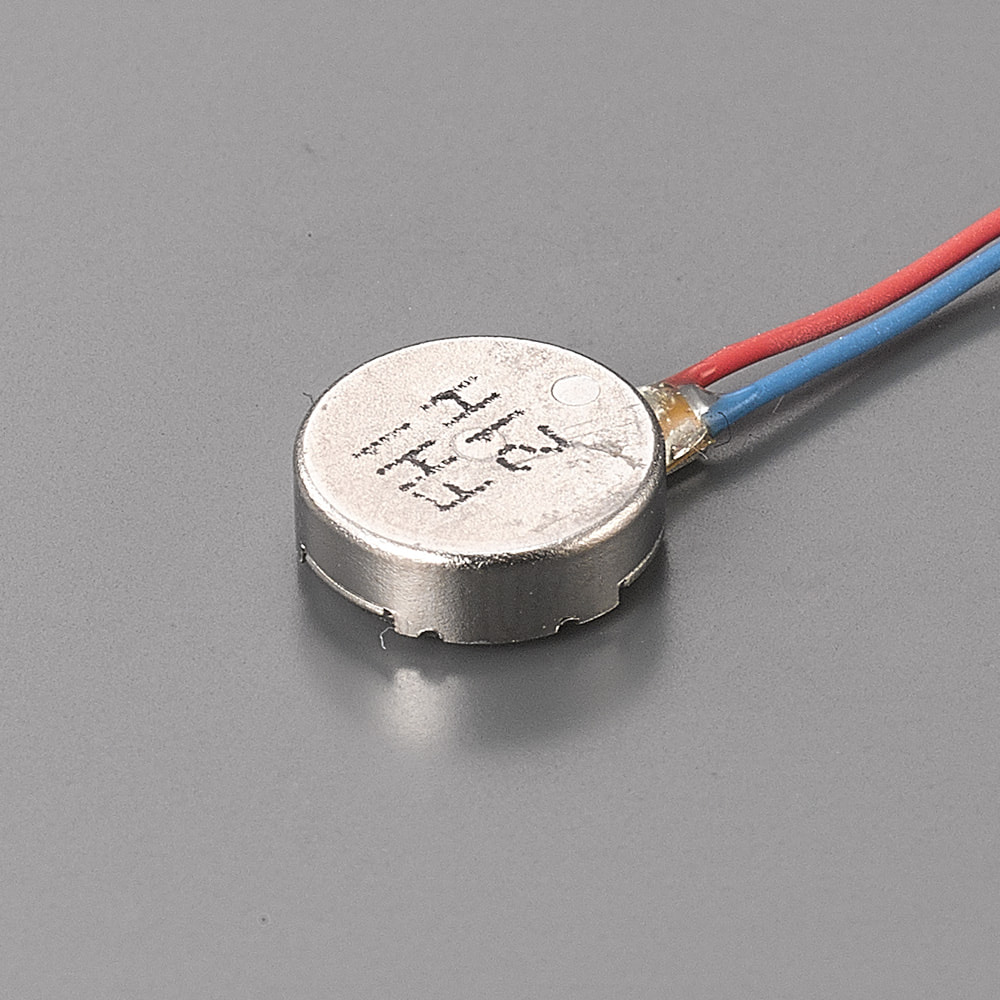

The C0625X15-WS brushless BLDC coin vibration motor is ideal for Hi-Rel applications or those with high duty cycles.

A driver IC is built imbedded within the motor, so no external driver IC is required.

Apply DC voltage as you would a normal brushed DC motor. This type of motor is about twice the price of its comparably sized brush type counterpart.

If you do not require a Hi-Rel motor, consider using this motor instead. Voltage polarity must be observed or you will damage the internal driver IC.

This device operates on DC voltage only. A PWM signal can not be used to drive BLDC motors.

Summary Of Specifications

Technology Type: BLDC

Diameter (mm): 6.0

Thickness (mm): 2.5

Rated Voltage (Vdc): 3.0

Operating Voltage (Vdc): 2.7~3.3

Rated Current MAX (mA): 90

Typical Current (mA): 67

Rise Time (ms) MAX *: 70

Fall Time (ms) MAX *: 90

Rated Speed (rpm, MIN): 12000

Vibration Force (Grms): 0.55

* at 50% of Maximum G force

Packaging Spec

Part Packaging: Plastic Tray

Qty per reel / tray: 100

Quantity - Master box: 5000

Size - Master Box: 51*35*17.5CM

Weight - Master Box: 5.4KG
